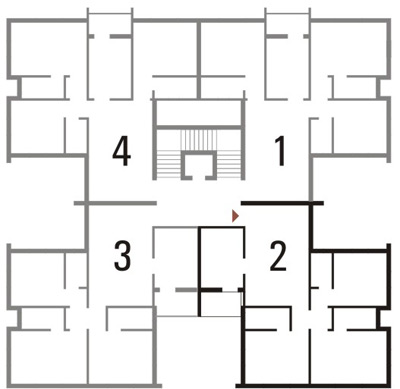

| Floor Plan |

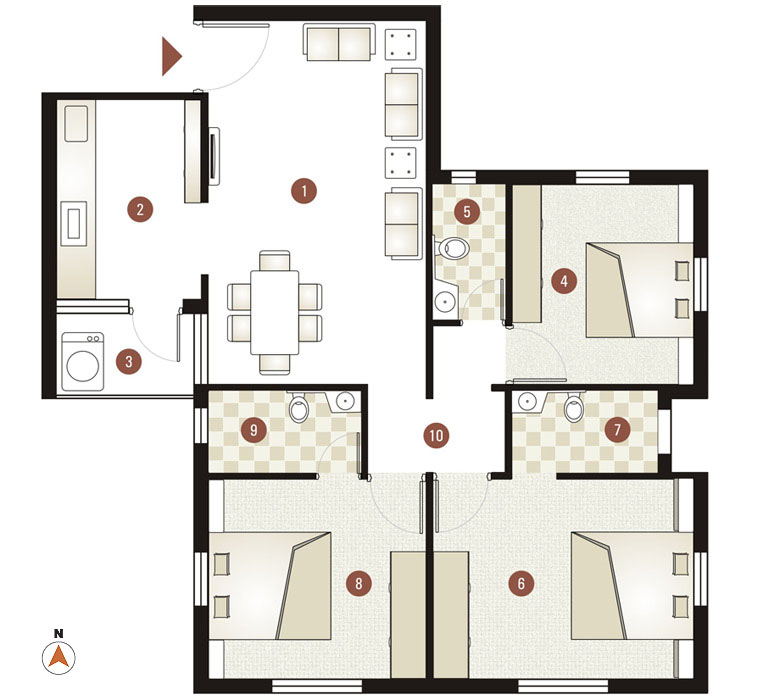

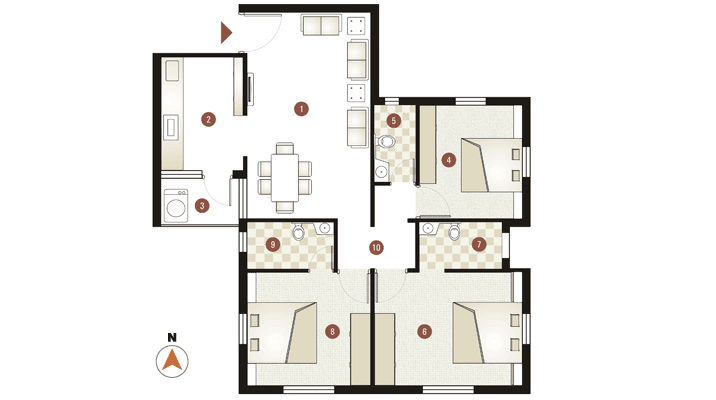

Legend
|
| |
|
 |
| 01 |
LIVING / DINING |
12'.0" x 20'-0" |
06 |
MASTER BED ROOM |
14'.6" x 11'-0" |
| 02 |
KITCHEN |
8'.0" x 11'-0" |
07 |
TOILET |
8'.0" x 4'-6" |
| 03 |
WASH |
8'.0" x 4'-6" |
08 |
BED ROOM - 2 |
12'.0" x 11'-0" |
| 04 |
BED ROOM - 1 |
10'.0" x 11'-0" |
09 |
TOILET |
8'.6" x 4'-6" |
| 05 |
TOILET |
4'.0" x 7'-6" |
10 |
UTILITY |
7'.9" x 4'-6" |
|
| |
|
|
